Aerial Drones

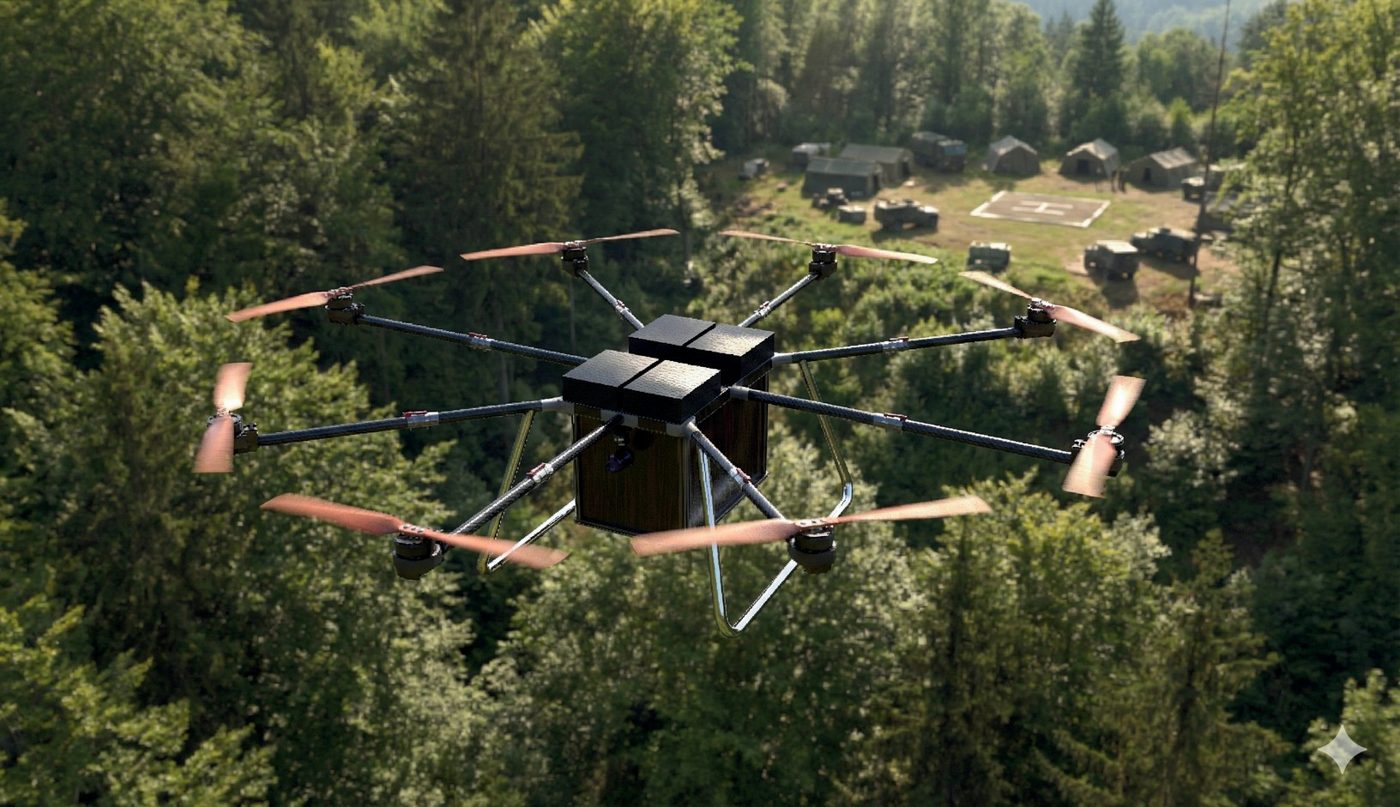

Cargo Drone
The Cargo Drone addresses the logistical challenges faced by the Bangladesh Army in supplying rations to high-altitude and rugged areas.
The drones are capable of carrying payloads of 30 kg, 50 kg and 100 kg over distances of up to 17 km, with a flight duration of approximately 30 minutes.
Key features
- Three prototype designs: 30 kg, 50 kg and 100 kg payload
- Up to 17 km delivery with empty return
- RTK-enabled hovering accuracy of ±5 cm
- 4K 8MP camera on a 3-axis gimbal
- Wind resistance up to 40 km/h
- Applications: ration supply, surveillance, emergency response
Specifications
Proposed Specifications
| Specification | 30 kg | 50 kg | 100 kg | Comments |
|---|---|---|---|---|
| Max Horizontal Flight Speed (m/s) | 30 | 30 | 30 | Against wind at max altitude with payload |
| Max Flight Altitude (ft / m) | 1000/303 | 1000/303 | 1000/303 | With payload |
| 3000/1000 | 1000/303 | 1000/303 | Without payload | |
| Hovering Endurance (min) | 35 | 32 | 30 | Without payload, sea level, no wind |
| 22 | 20 | 18 | With payload, sea level, no wind | |
| Max Flight Distance (km) | 35 | 35 | 35 | Without payload at 15 m/s, sea level, no wind |
| 20 | 18 | 15 | With payload at 15 m/s, sea level, no wind | |
| 17+17 | 17+17 | 17+17 | Payload delivery & empty return, with wind, 3000 ft at 30 m/s | |
| Dry Weight (kg) | 38 | 50 | 65 | Without battery |
| 70 | 103 | 140 | With battery | |
| Battery Weight (kg) | 32 | 53 | 75 | Total weight |
| Max Takeoff Weight (kg) | 156 | 230 | 310 | At sea level |
| Battery Details (Pack × Ah) | 2×60 | 3×65 | 5×55 | Li-ion battery |
| Wind Resistance (km/h) | 40 | 40 | 40 | Level 6 equivalent (Beaufort) |
| Communication Range (km) | 20 | 20 | 20 | Line of sight |
| Dimensions (mm) | 2600 × 2600 × 1000 | 3600 × 3600 × 1000 | 4600 × 4600 × 1200 | – |
| Camera | 4K 8MP 3-axis gimbal | 4K 8MP 3-axis gimbal | 4K 8MP 3-axis gimbal | – |
| Hovering Accuracy (cm) | ±5 / ±5 | ±5 / ±5 | ±5 / ±5 | RTK enabled, horizontal / vertical |
| ±100 / ±10 | ±100 / ±10 | ±100 / ±10 | RTK disabled, horizontal / ToF enabled | |
| Max Ascent Speed (m/s) | 5 | 5 | 5 | – |
| Max Descent Speed (m/s) | 2 | 2 | 2 | – |
