Jontro Soinik 1.0 (JS1.0)

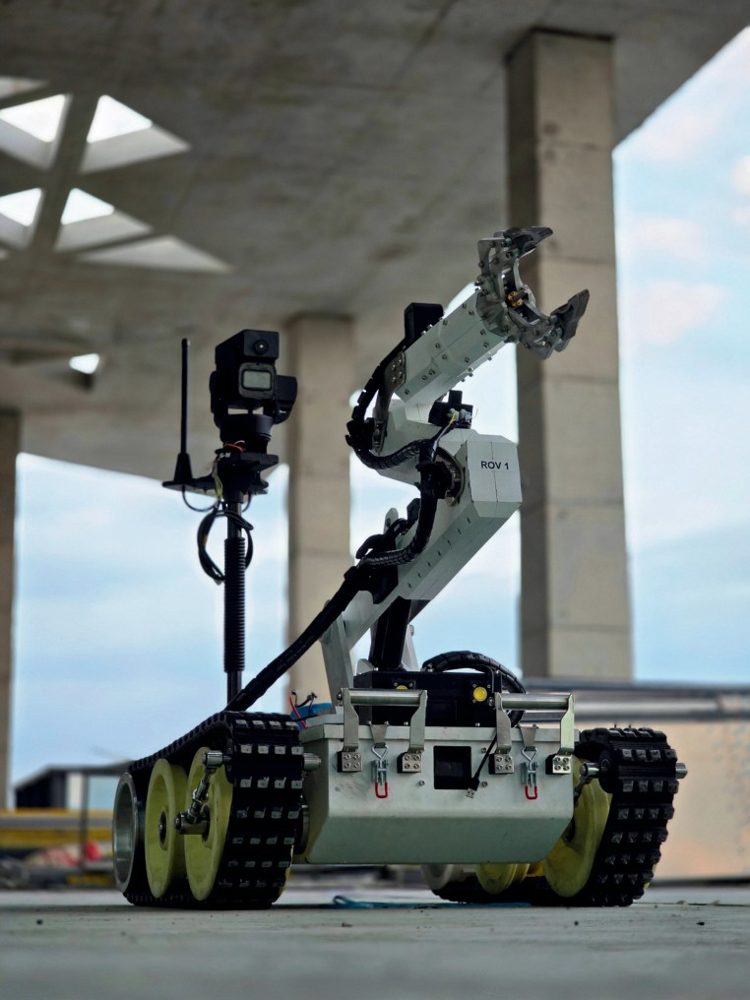

Jontro Soinik 1.0 is Bangladesh's third generation and most advanced indigenously developed Explosive Ordnance Disposal (EOD) Remotely Operated Vehicle. It is engineered for rapid deployment and rugged performance in high-risk environments. The platform offers environmental adaptability and disruptor firing capacity.

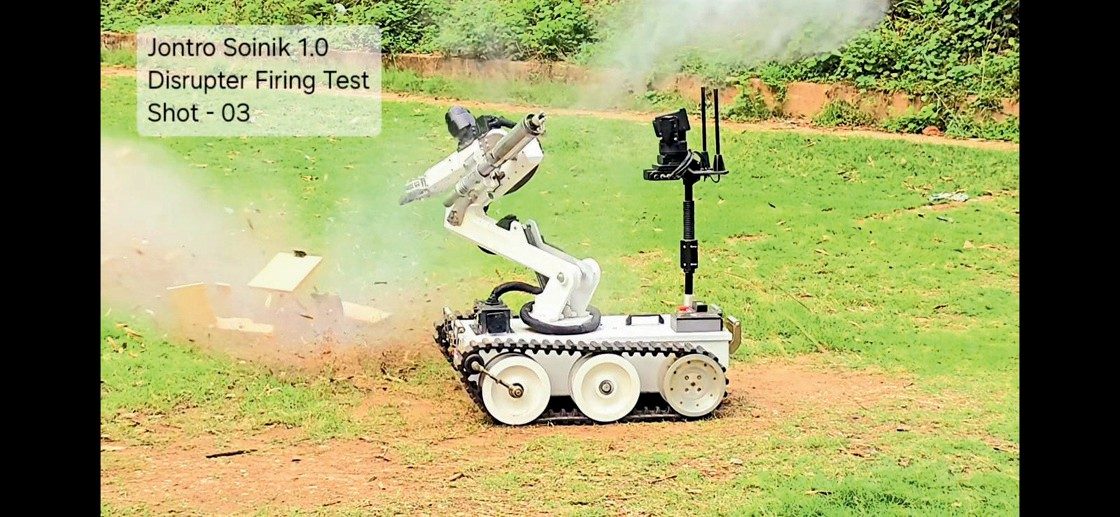

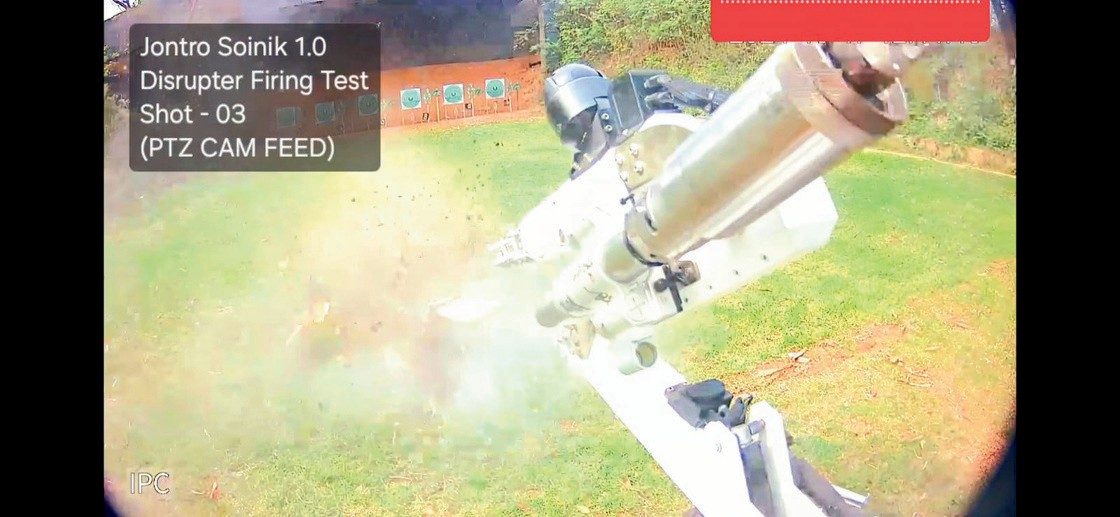

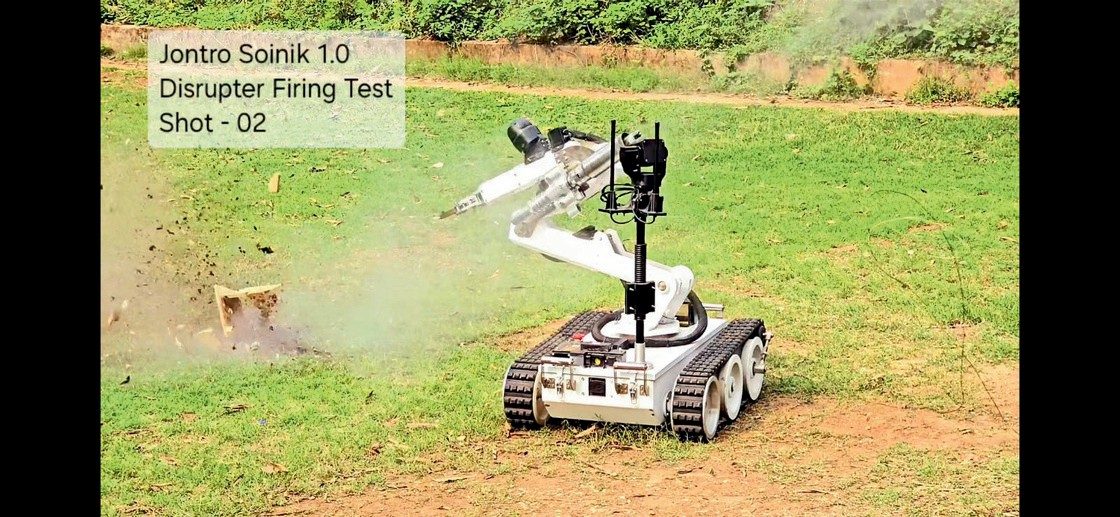

The ROV has been successfully tested by the Bangladesh Army, including live disruptor firing and IP55 water protection trials. Jontro Soinik 1.0 has been delivered to the Peruvian Armed Forces and deployed to the UN Mission in the Republic of Mali.

Request a quote Ask a question

Key features

GPS, thermal imaging, IR night vision, 4x optical zoom and 2MP camera system
Stair climbing and slope handling up to 40 degrees
360-degree claw rotation with 40 kg grip force
Lifting capacity up to 20 kg
Disruptor firing capability with 4 × 24 V firing circuits
16Ah battery with active and passive overload protection
IP55 water ingress protection

Specifications

Mechanical Specifications

Functionality	Specification
Water Ingress Protection	IP55
Stair Climbing Ability	8 inch (min)
Slopes	40° (min)
Vertical Obstacle	30 cm (min)
Horizontal Obstacle / Ditch	35 cm (min)
Side Tilt	30° (min)
Speed	5 km/h
Turning Radius	80 cm (min)
Turret	200° (min)
Shoulder	100° (min)
Elbow	150° (min)
Wrist	270° (min)
Claw Joint	360°
Gripper Opening	18 cm (min)
Grip Force	40 kg (min)
Lift Capacity (Retracted)	20 kg (min)
Lift Capacity (Extended)	8 kg (min)
Lift Capacity (Side)	5 kg (min)
Vertical Reach	150 cm (min)
Horizontal Reach	100 cm (min)
Vertical Reach Beneath	25 cm (min)

Electrical Specifications

Functionality	Specification
GPS Locator	Available
Wireless HCU	Available
Claw Camera	IR night vision capability
Laser Range Finder	Minimum 1, range 10 cm to 40 m
Proximity Sensor	Minimum 2
Shock Tube Initiator	2-channel shock tube initiator
Calibration	Self-calibration and display of calibration status
OCU	Video feed, command system
ROV Battery	16 Ah battery capacity
Main PTZ	Surveillance
Camera Zoom	4X optical zoom
Front and Rear Camera	Viewing obstacles
Under Vehicle Kit	For inspecting under vehicles
Thermal Camera	Viewing heat map
Self Collision Avoider	Hall sensors or position encoders
Battery Weight	10 kg (optimum)
Battery Type	48 Volt
Active Overload Protection	Trigger and indication in OCU
Passive Overload Protection	Fuse mechanism
Communication Port	Minimum 1
Self Recovery	Self-recovers from typical errors
Self-diagnostic	Display warning, data loss
Minimum Battery Capacity	10 Ah
Operational Temperature	Up to 50 °C
Deployment Time	Maximum 5 minutes
Temperature Sensor	Available
RF Extender	Increases video/data transmission up to 152 m
Firing Circuit	4 × 24 V firing circuits per ROV
Range	LOS 1000 ft minimum, NLOS 300 ft minimum
Screen	Daylight-readable screen
Battery Indicator	Status indicator
Lights	High-luminosity 12 V 5 W lights, front and back
Camera Tilt	80° minimum
Video Recording	320 GB or more
Battery Recharge Time	2–4 hours
AC Power and Charging	220 V ±10%, 50 Hz
Additional Rechargeable Battery	Extends operation beyond 3–5 hours
Humidity During Operation	95% at operating temperature
Storage Temperature	0 to 50 °C
Camera Resolution	2 megapixel (min)
