Defense Solutions

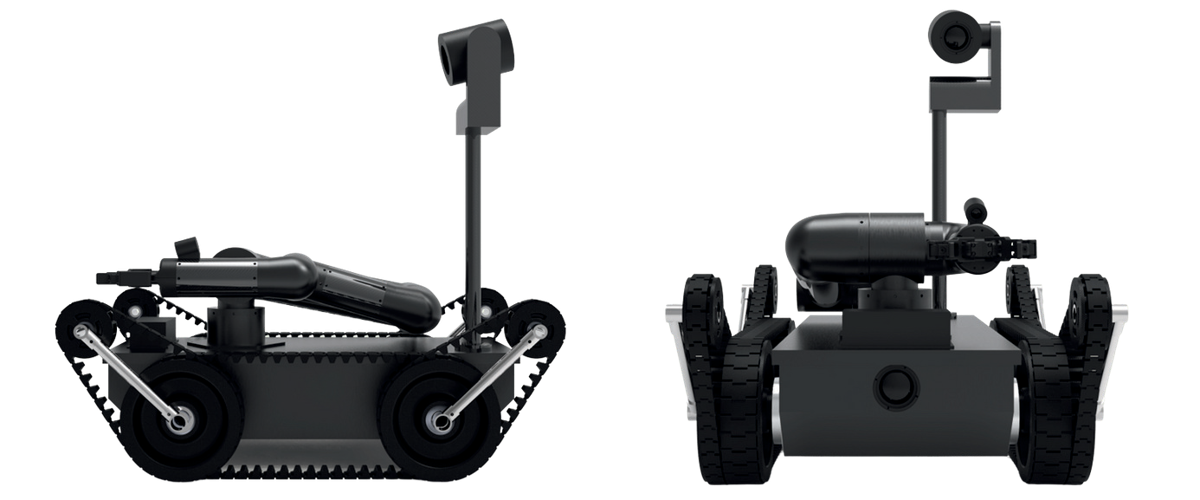

Jontro Soinik 2.0 (JS2.0)
Jontro Soinik 2.0 is a man-transportable Remotely Operated Vehicle (ROV) for Explosive Ordnance Disposal (EOD) — a sophisticated, small-platform bomb disposal robot with heavy lifting capability that helps bomb technicians in Counter-Improvised Explosive Device (C-IED) operations.
It travels at 3 km/h, handles 40° inclines and 30 cm obstacles, and features a detachable arm with a minimum of 6 degrees of freedom, 120 cm reach and 5 kg lift capacity. The telescopic beam supports tools like disruptors, with a 2-hour battery life.
The drive system uses a belt-driven mechanism with independent flipper control, isolating wheel rotation from flipper orientation for precise control and stability on uneven terrain. The arm, made of steel, aluminium alloys and composites, offers ±100° turret rotation, 180° shoulder and elbow rotation, 300° wrist pitch, 360° continuous roll and a 550 mm telescopic reach.
The ROV operates from -5 °C to 55 °C and is IP54 rated — dust-protected and resistant to water splashes from any direction.
Key features
- Minimum 6 degree-of-freedom arm
- Disruptor mount enabled
- 5 kg lift capacity with arm retracted
- Stair climbing up to 20 cm at 40° angle
- 2-inch ground clearance
- 4 cameras with IR vision for operation
- Designed, manufactured and assembled in Bangladesh
Specifications
General
| Item | Specification |
|---|---|
| Make and Model | Jontro Soinik 2.0 |
| Type of ROV | Track type |
| Country of Origin | Bangladesh |
| Country of Design & Manufacturing | Bangladesh |
| Country of Assembly | Bangladesh |
Vehicle Dimensions
| Item | Specification |
|---|---|
| Length | 750 mm |
| Width | 550 mm |
| Height | 550 mm |
Capability
| Item | Specification |
|---|---|
| Payload | 5 kg (arm retracted), 4 kg (arm extended) |
| Ground Clearance | 2.00 inches |
| Stairs | Minimum 40° |
| Stair Pitch | Minimum 20 cm |
| Slopes | Minimum 40° |
| Side Tilt | Minimum 30° |
| Obstacle (Vertical) | Minimum 30 cm |
| Maximum Speed | Minimum 3 km/h |
Manipulator Arm
| Item | Specification |
|---|---|
| Degrees of Freedom | Minimum 6 DOF |
| Wrist | 300° |
| Gripper Width | 100 mm open (minimum) |
| Vertical Reach | Minimum 100 cm |
| Horizontal Reach | Minimum 100 cm |
| Overload Protection | Available |
Cameras, Power & Systems
| Item | Specification |
|---|---|
| Cameras | 4 cameras (rear, front, claw & PTZ) |
| Configuration | All cameras with IR vision capability |
| Night Operation | Night vision for night operability |
| Battery | Li-Ion, 2 pcs per ROV, 48 V nominal, 8000 mAh (minimum) |
| Operation Range (Wired) | 200 m |
| Operation Range (Wireless) | 100 m |
| Body Materials | Al alloys, SS, high-carbon steel, PLA+ |
| RF System | Available |
| Mount Assembly | Available |
| Disruptor Mount | Available |
| Claw Attachment Kit | Camera extension, clothes cutter, box opener, tire slashers, bottle piercer, box grabber, object puller, mail grabber, wire cutter |
